Performance
| Motherboard form factor |
ATX |
| Audio system |
ALC 892 |
BIOS
| BIOS memory size |
16 MB |
| ACPI version |
2.0 |
Internal I/O
| USB 2.0 connectors |
4 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
6 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Number of IEEE1394 connectors |
1 |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Number of chassis fan connectors |
2 |
Graphics
| Maximum graphics adapter memory |
512 MB |
| On-board graphics adapter |
Y |
Memory
| Non-ECC |
Y |
| ECC |
Y |
| Number of memory slots |
4 |
| Maximum internal memory |
16 GB |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Firewire (IEEE 1394) ports |
1 |
| eSATA ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI Express x16 slots |
2 |
| PCI Express x1 slots |
1 |
| PCI Express x4 slots |
1 |
Additionally
| Chipset |
AMD 890GX |
| Graphics |
Radeon HD 4290 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

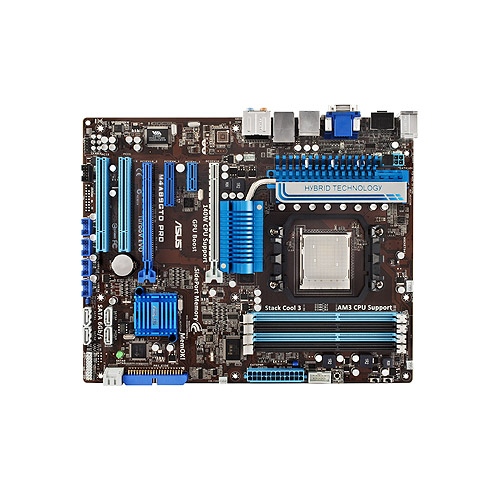

M4A89GTD PRO, AMD 890GX/SB850,DDR3 2000/1333/1066, PCI
AMD® AM3 Phenom™II /Athlon™II /Sempron™ 100 Series Processors
This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.
AMD® 890GX
AMD® 890GX Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and quad PCI Express™ 2.0 x16 graphics. It is optimized with AMD’s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities.
True SATA 6Gb/s Support
The AMD® SB850 Southbridge natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.
Dual-Channel DDR3 2000(O.C.)/1333/ 1066 support
The motherboard supports DDR3 memory that features data transfer rates of 2000(O.C.)/1333/1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
High Definition Audio
Enjoy high-end sound system on your PC!
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
