Memory
| Supported memory clock speeds |
1066, 1333 MHz |
| Non-ECC |
Y |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
32 MB |
| ACPI version |
2.0 |
Other features
| Manageability features |
WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
Internal I/O
| USB 2.0 connectors |
8 |
| Number of SATA connectors |
6 |
| TPM connector |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
1748 MB |
| On-board graphics adapter |
Y |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Performance
| Audio system |
Realtek ALC887 |
Back panel I/O ports
| PS/2 ports quantity |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Networking
| Networking features |
Gigabit LAN |
Additionally
| Dual-link DVI |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

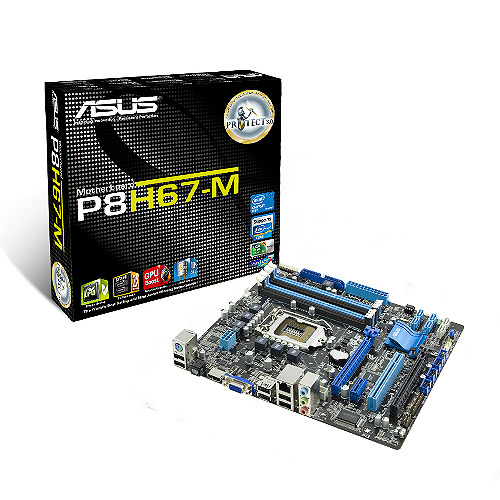

P8H67-M - Intel Socket 1155, 4 x DIMM, Max. 32 GB, DDR3, Intel H67 Express, Realtek® ALC887, Realtek® 8111E Gigabit LAN, uATX
LGA1155 Intel® Sandy Bridge Processor Ready
This motherboard supports the latest Intel® Sandy Bridge processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® Sandy Bridge processors are among the most powerful and energy efficient CPUs in the world.
Intel® H67 Chipset
The Intel® H67 Express is the latest single-chipset design that supports the new socket 1155 Intel® Core™ i3/Core™ i5/Core™ i7 2nd generation processors. It improves performance by utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally, the H67 comes with 2 SATA 6Gb/s and 4 SATA 3Gb/s ports for faster data retrieval, doubling the bandwidth of current bus systems. Moreover, Intel® H67 Express Chipset also supports iGPU function.
Quad-GPU CrossFireX Support!
Flexible Multi-GPU solutions, Your Weapon of Choice!
P8H67-M brings you the multi-GPU choice of ATI Quad-GPU CrossFireX. The motherboard features the most powerful Intel H67 platform to optimize PCIe allocation in multiple GPU configurations. Expect a brand-new gaming style you’ve never experienced before!
Native SATA 6Gb/s Support
The Intel® H67 Chipset natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.
GPU Boost
Go to the Limit with iGPU Level Up!
GPU Boost accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-level upgrades for every use.
MemOK!
Any Memory is A-OK!
MemOK! quickly ensures memory boot compatibility. This remarkable memory rescue tool requires a mere push of a button to patch memory issues. MemOK! determines failsafe settings and dramatically improves system boot success. Get your system up and running in no time!
